HOME HARVEST 4′ X 6′ GREENHOUSE PLAN. If you need a copy of the architectural drawings, please send your receipt of purchase to retailteam@amerilux.com and we will send you with a digital copy of the greenhouse kit plan.

ADDITIONAL SET OF HANDS NEEDED TO ASSIST WITH INSTALL. Working with another person will make the installation of the greenhouse panels easier. For any product or installation questions, please contact us at 920.336.9300 or send an email to retailteam@amerilux.com.

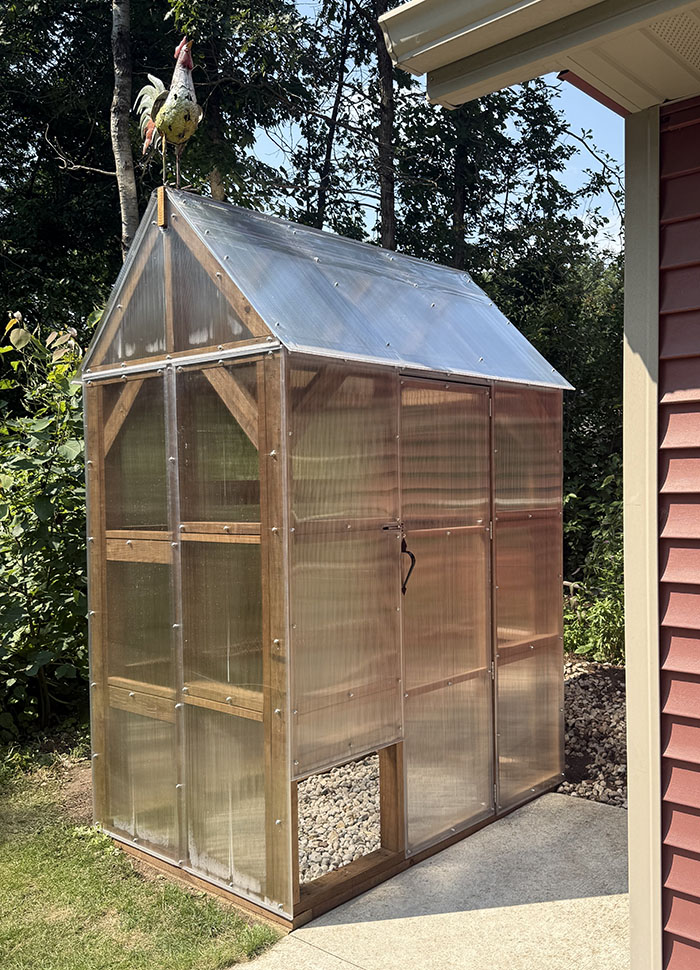

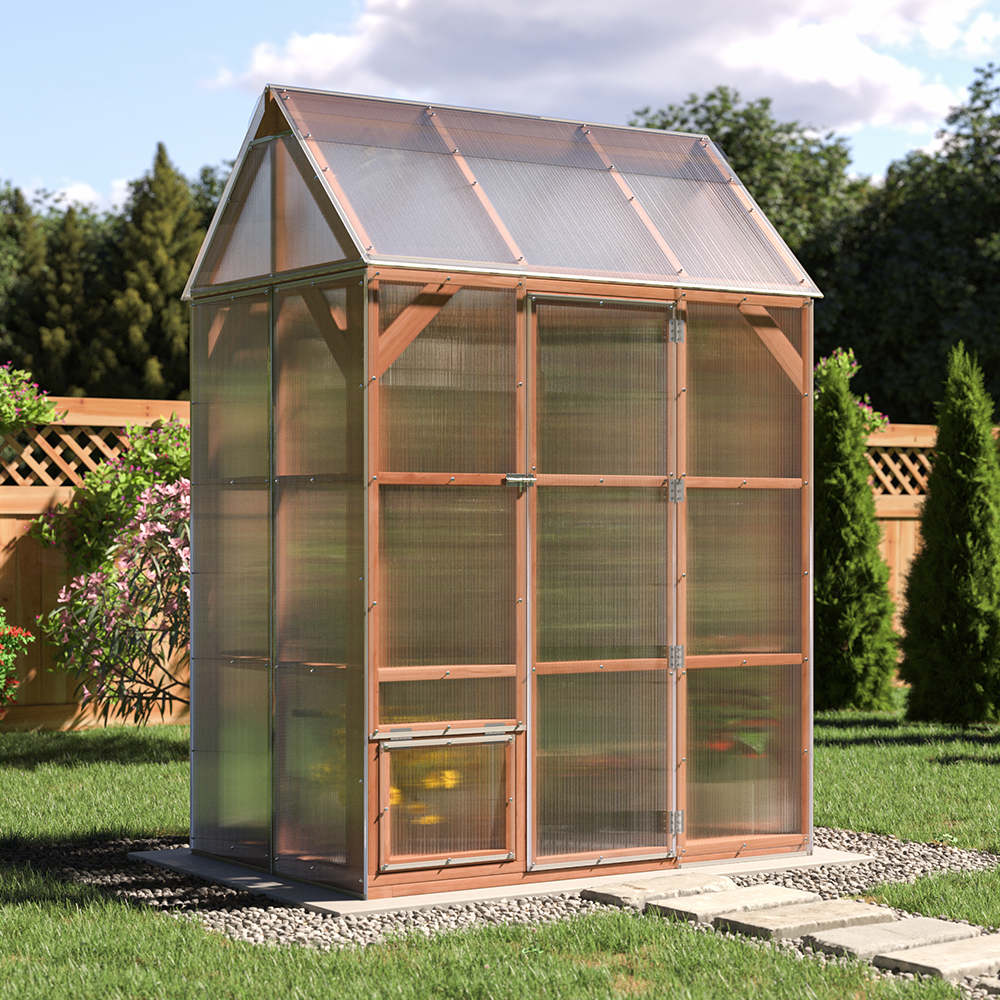

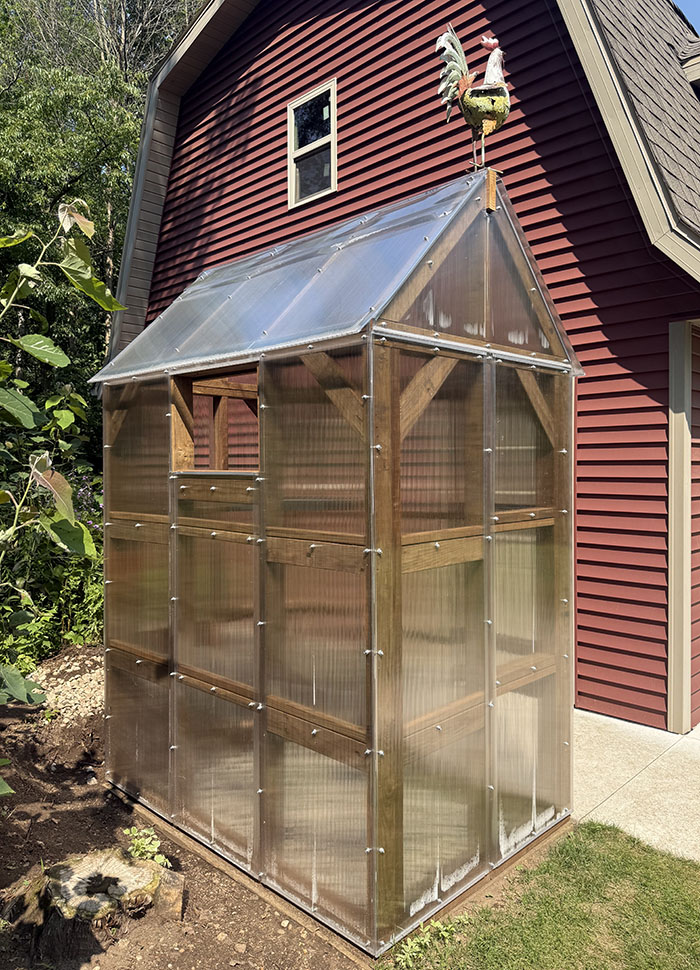

Home Harvest 4’ x 6’ Greenhouse Panel Kit: Technical & Install Guide

AmeriLux International offers a 10-year prorated material warranty for the 6mm polycarbonate structured panels. Please read instructions BEFORE installing greenhouse panels. Installing panels incorrectly may result in poor product performance and/or void the manufacturer’s warranty.

Home Harvest Greenhouse Panel 10-Year Prorated Warranty

Local Building Codes:

• Make sure to contact your local municipality to see if there any restrictions, regulations, or permits needed for building a greenhouse in your area. In addition, check for any underground utilities such as gas, telephone, cable, or sprinkler lines before digging.

Prepare Foundation:

• Choose a sunny location with good drainage that is protected from strong winds. If your desired location isn’t flat, level it out. Orient your greenhouse optimally so it will get maximum sunlight.
• We recommend your greenhouse base be anchored to a wood post foundation, concrete pier foundation, or concrete slab foundation. Reference greenhouse plans for residential applications.

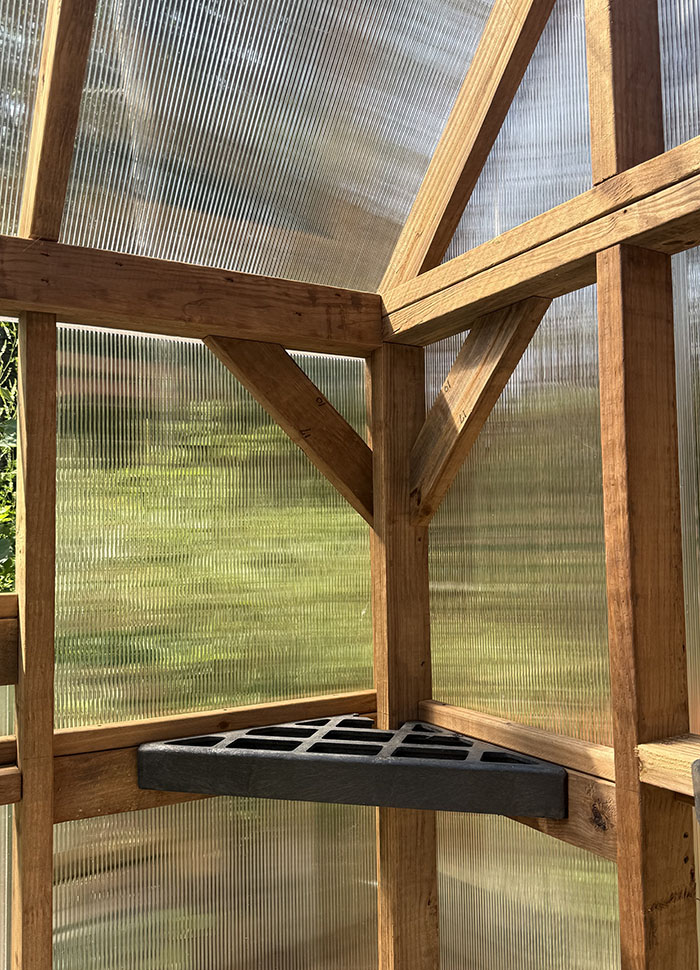

Build Wood Structure:

• Cut lumber and assemble the greenhouse frame according to the provided greenhouse plans and specifications. Make sure to take accurate measurements before making the cuts. Secure frame with exterior screws rated for use with treated lumber. Double-check that the frame is square and level before installing polycarbonate greenhouse panels.

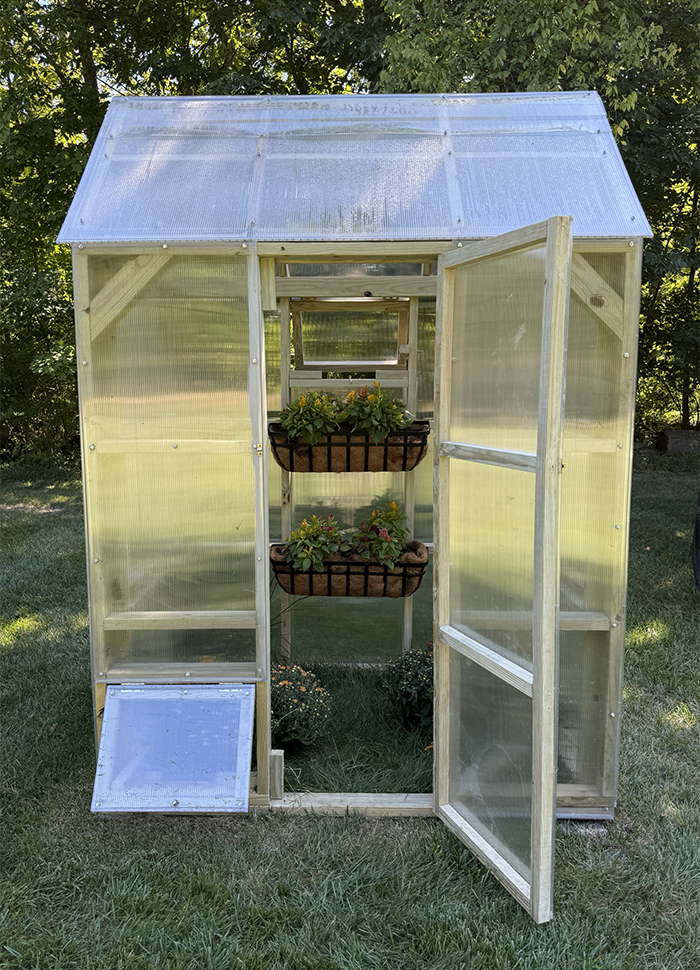

• Cut lumber and assemble the wood frames for the windows and doors according to the provided greenhouse plans and specifications.
• As noted on Page 1 of the drawings, the installation guide provides an ‘optional alternative’ for making the door and window stops. Before cutting lumber, determine which option to use based on your carpentry skill level and desired finished look.
• In lumber, ‘nominal size’ (2×2 or 2×4) refers to the thickness and width of the wood before it’s dried and planed, while ‘actual size’ is the finished size after the wood is processed. The greenhouse plans included with this kit have taken this lumber size difference into consideration.

Scan for Hardware & Lumber Cut List

2-in x 4-in Pressure Treated Lumber (Nominal: 2 x 4, Actual Size: 1-1/2 x 3-1/2)

• (3) Base: 2” x 4” x 8’
• (6) Front Wall: 2” x 4” x 8’
• (6) Back Wall: 2” x 4” x 8’
• (9) Side Walls: 2” x 4” x 8’
• (6) Roof: 2” x 4” x 8’

2-in x 2-in Pressure Treated Lumber (Nominal: 2 x 2, Actual Size: 1-1/2 x 1-1/2)

• (3) Front Wall: 2” x 2” x 8’
• (1) Back Wall: 2” x 2” x 8’
• (4) Door/Windows: 2” x 2” x 8’

2-in x 6-in Pressure Treated Lumber (Nominal: 2 x 6, Actual Size: 1-1/2 x 5-1/2)

• (1) Roof: 2” x 6” x 8’

As Noted on Drawing: Front Wall Assembly (Page 1, Number 3) Lumber needed if using ‘optional alternative’ for the Door/Window Stops (Cut from 2×2 scraps)

• (2) Door Frame Stops: 2” x 2” x 6”
• (4) Window Frame Stops: 2” x 2” x 6”
• (2) Window Ventilation Stops: 2” x 2” x 16” (Wind Braces)

Exterior Grade Wood Screws (Recommended Framing Fasteners)

• (5lb box) #9 x 2-1/2” Phillips Flat Head (1/8” drill bit for pilot hole)

6mm Clear Polycarbonate Panels

• (1) 23.50″ W x 58.00″ L (Panel A)
• (7) 23.50” W x 76.50” L (Panel B)
• (1) 23.25″ W x 73.25″ L (Panel C)
• (1) 20.75″ W x 15.50″ L (Panel D)
• (1) 23.50″ W x 59.00″ L (Panel E)
• (1) 22.25″ W x 15.50″ L (Panel F)
• (2) 48.00″ W x 20.00″ L (Panel G – Triangle Cuts)
• (2) 72.00″ W x 36.00″ L (Panel H)

6mm Clear Polycarbonate H-Channel

• (2) H-Channels, 60.00″ L (HC 60)
• (2) H-Channels, 77.00″ L (HC 77)

6mm Clear Polycarbonate U-Channel

• (25) U-Channels, 24.00” L (UC 24)
• (7) U-Channels, 36.00” L (UC 36)
• (2) U-Channels, 48.00” L (UC 48)
• (4) U-Channels, 60.00” L (UC 60)
• (14) U-Channels, 77.00” L (UC 77)

Clear Polycarbonate Ridge Cap

• (1) Standard Ridge Cap, 74″ L

Edge Sealing Tape

• (2) 1” Roll, Aluminum ‘Solid’ Tape
• (2) 1” Roll, Anti-Dust ‘Vent’ Tape

MultiLite Wood Screw (Recommended greenhouse panel fasteners)

• Hex-Head, Sharp Tip: (3 Pks) #10 x 1” (1/8” drill bit, 1/4” hex bit)

Door Hardware:

• (4) 3” Narrow Hinge w/Non-Removable Pin
• (1) 3” Sliding Barrel Bolt Lock

Window Hardware:

• (4) 3” Narrow Hinge w/Non-Removable Pin
• (2) 1” Hook & Eye Bolt
• (2) 3/8” x 4-1/2” Carriage Bolt w/3/8” Washer & Nut

NOTE: Hardware listed above can be purchased at your local home improvement or hardware store. Make sure your hardware is rated for exterior use. Follow manufacturer’s instructions for installing hardware as every brand is different.

Handling & Storage: To avoid unnecessary scratches, pick up and carry multiwall polycarbonate panels. Do not drag on ground. Store panels flat in a cool, dry place. Cover loosely with an opaque material.

Safety Tips: Always wear safety glasses and gloves when using cutting tools. Do not walk or kneel on multiwall polycarbonate panels during installation.

Gather Tools: Common tools needed include a Circular Saw, Miter Saw, Framing Square, Level, Sawhorses, Carpentry Pencil, Drill/Driver w/Hex & Phillips Bits, Philips Screwdriver, Tin Snips, Utility Knife, Scissors, Putty Knife, and Step Ladder.

NOTE: Build the greenhouse frame first. Confirm your structure is square and level. Make any necessary adjustments BEFORE installing the greenhouse panels.

To maintain high light transmission and panel integrity, periodically clean the polycarbonate panels to remove dirt, dust, and debris that accumulates on the surface. Don’t clean in direct sunlight or at high temperatures.

• Gently wash panel with mild household detergent, lukewarm water, and a soft cloth or sponge.
• Thoroughly rinse panel with clean water and dry with a soft cloth to prevent water spotting.
• Never use abrasive cleaner, corrosive chemicals, or gasoline.
• Never scrub with brushes, steel wool, or other abrasive materials.
• Don’t use squeegees, razorblades, or other sharp instruments to remove deposits or spots.
